-17%New

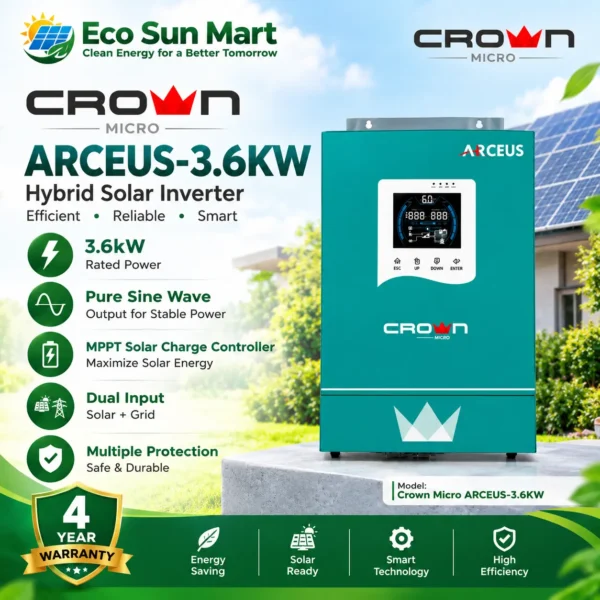

Crown Micro Arceus-3.6KW 24V PV-5000W MPPT Solar Inverter
Original price was: 47,500.00৳ .44,500.00৳ Current price is: 44,500.00৳ .

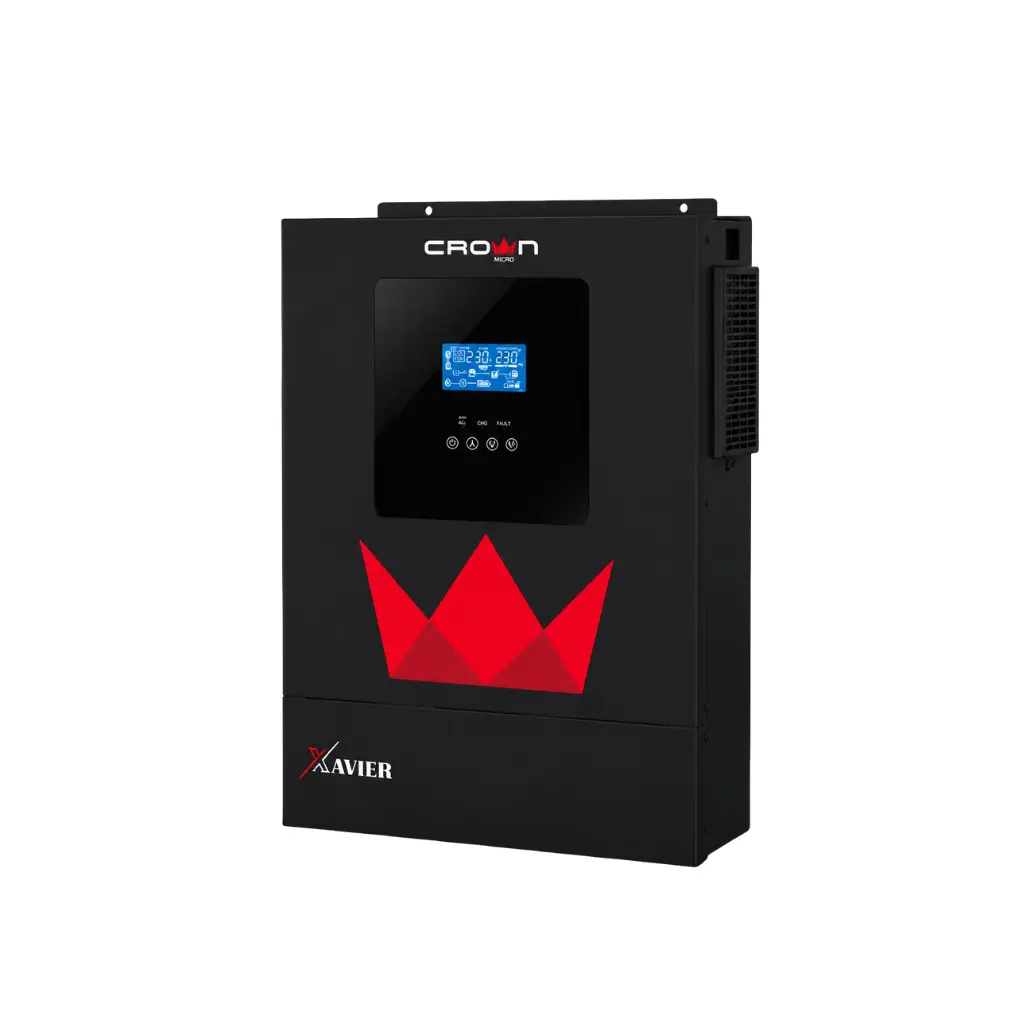

Crown Micro Xavier X-3KW-PF1 MPPT Solar Inverter
Original price was: 52,000.00৳ .45,000.00৳ Current price is: 45,000.00৳ .
Crown Micro Xavier X-1.5KW-PF1 MPPT Solar Inverter
Original price was: 35,000.00৳ .29,000.00৳ Current price is: 29,000.00৳ .
- Model: X-1.5KW-PF1
- Pure sine wave inverter with built-in 80A MPPT (30–400VDC)
- Works with or without battery; 12V Lithium/Lead-acid supported
- Peak efficiency 93%, PF=1, surge 2400VA, 2.5″ LCD with touch pad
- 4-year warranty (terms & conditions apply)
Genuine Product
Everything is authentic
Installation Support
Expert installation support

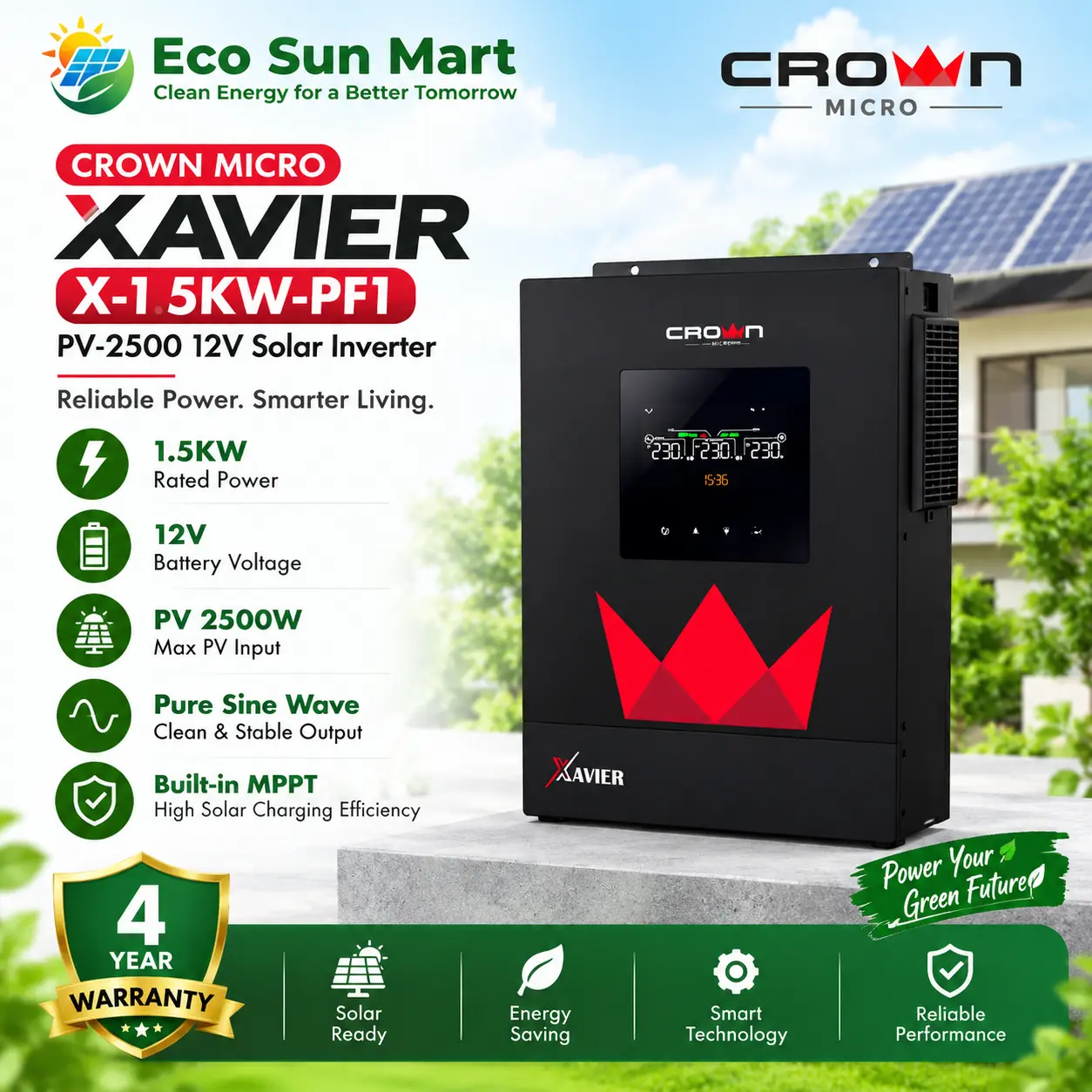

Crown Micro Xavier X-1.5KW-PF1 (PV-2500)
Crown Micro Xavier X-1.5KW-PF1 PV-2500 is a pure sine wave, MPPT-based solar inverter built for dependable home and small-business power. It combines a wide PV window (30–400VDC, 400V OCV) with an integrated 80A MPPT solar charger, flexible AC input ranges, and fast 10ms transfer time for sensitive loads. The unit can operate with or without a battery, and when used with storage it supports 12V Lithium and Lead-acid. Peak efficiency reaches 93% and output power factor is PF=1, delivering more usable power to your appliances.
| Category | Specification |
|---|---|
| Model Name | X-1.5KW-PF1 (PV-2500) |
| Rated Power | 1500VA / 1500W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170–280VAC (for PCs) / 90–280VAC (for home appliances) |
| Frequency Range | 50Hz / 60Hz (auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Battery Mode) | 230VAC ±5% |
| Output Power | 1500W with PV & battery / 1200W with battery only |
| Surge Power | 2400VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (for personal computers) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 16VDC |
| Battery Type | Lithium / Lead-acid |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Max PV Array Open-Circuit Voltage | 400VDC |
| Max PV Array Power | 2500W |
| MPPT Range @ Operating Voltage | 30–400VDC (30–60V with battery) |
| Max Solar Charge Current | 80A |
| Max AC Charge Current | 80A |
| Max Charge Current | 80A |
| Max PV Input Current (Isc) | 11A |
| GENERAL SPECIFICATIONS | |
| Dimensions (D×W×H) | 90 × 283 × 357 mm |
| Net Weight | 6.6 kg |
| Communication Interface | RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5%–95% RH (non-condensing) |
| Operating Temperature | −10°C to +50°C |
| Storage Temperature | −15°C to +60°C |
