TOMZN TOQ3 Dual Power Automatic Transfer Switch ATS

TOMZN TOQ3-2P 63 2P 63A 230V MCB Type Dual Power Automatic Transfer Switch

TOMZN TOQ3 2P 63A 230V MCB Type Dual Power Automatic Transfer Switch (ATS)

Brands: TOMZN

Original price was: 4,500.00৳ .Current price is: 4,200.00৳ .

Brand: TOMZN
Model: TOQ3-2P/63
2-pole MCB Type Automatic Transfer Switch (ATS)
Switch time <4s, supports Manual & Automatic modes
6 months warranty (excluding burns & physical damage)

Add to wishlist

Compare

Category: Solar Accessories

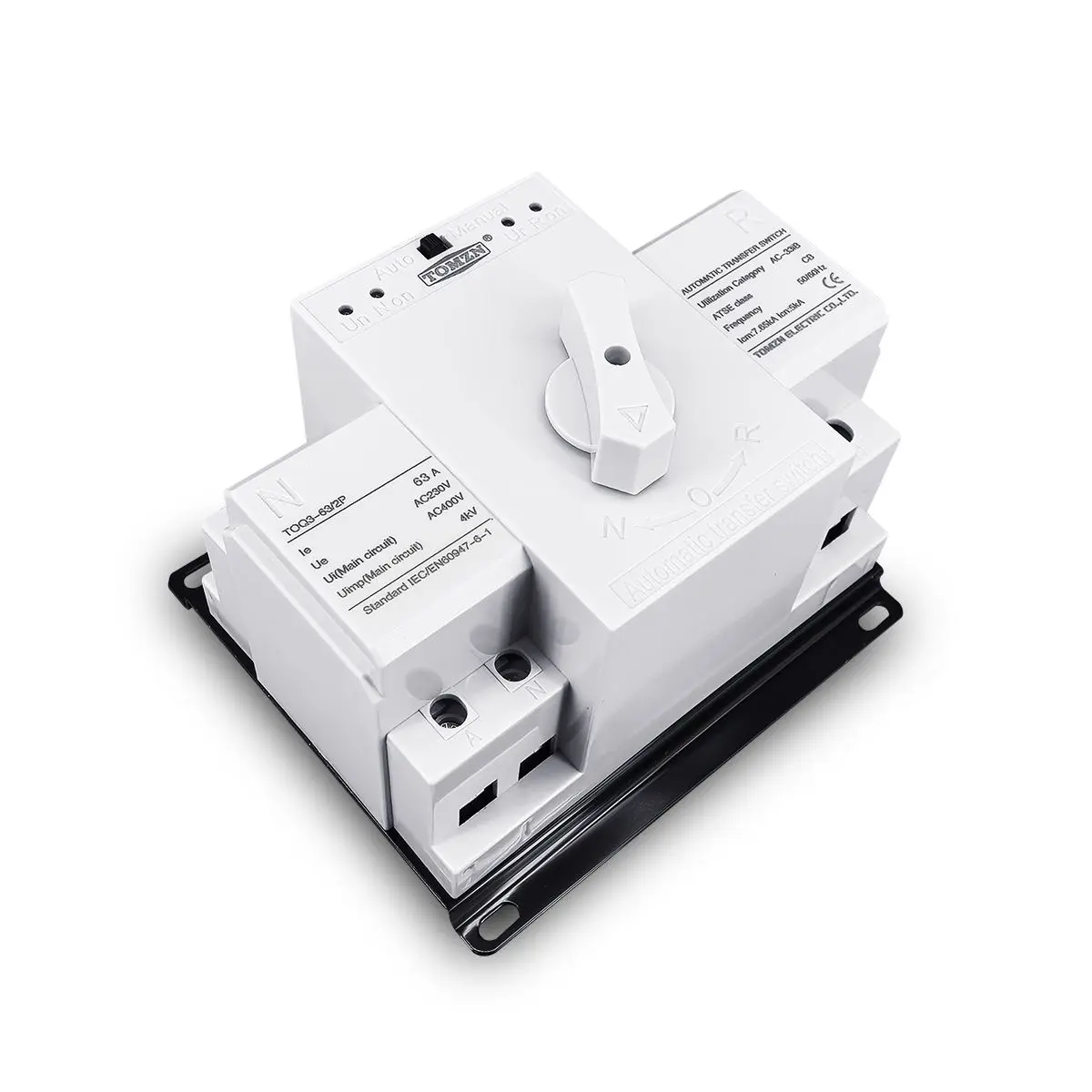

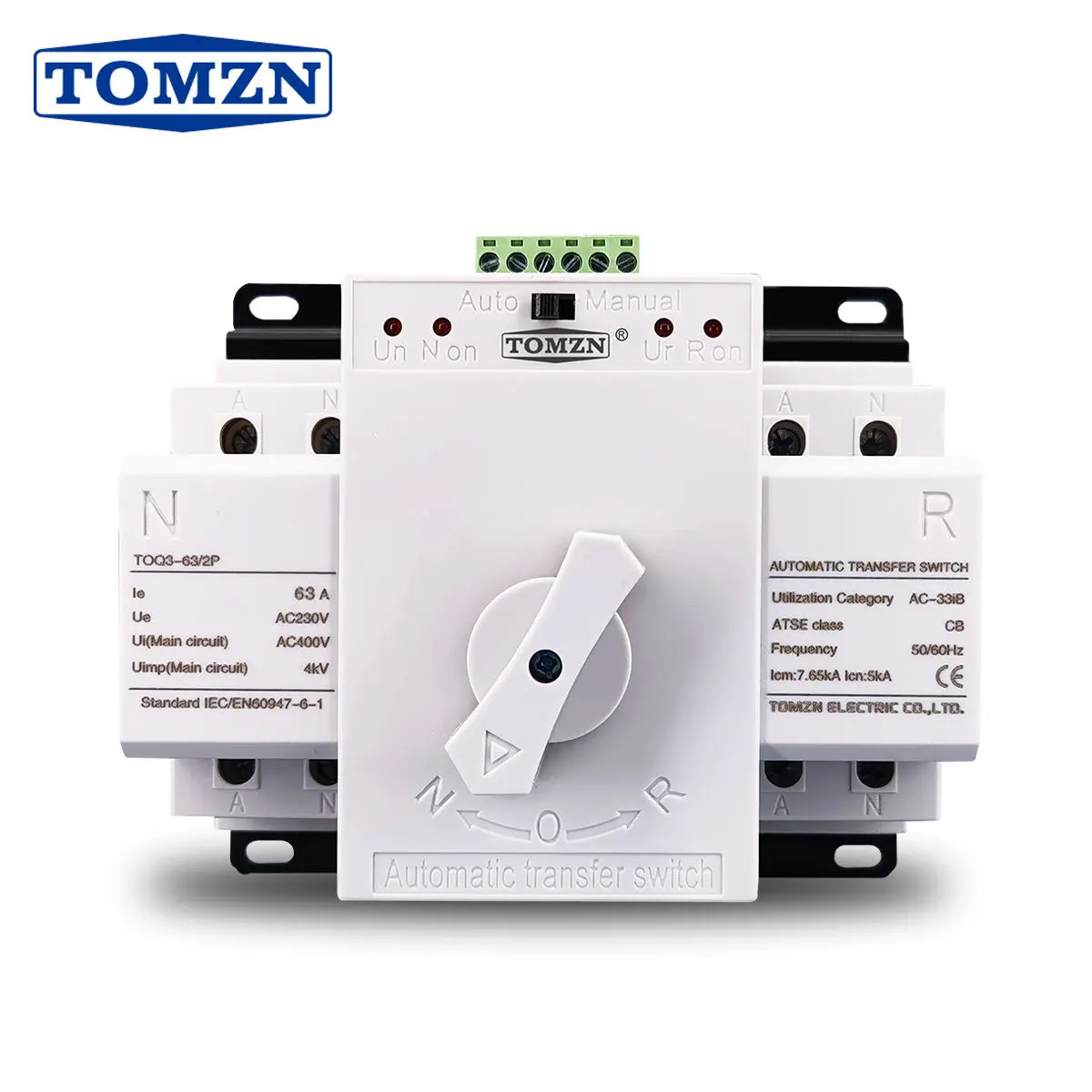

TOMZN 2P 63A 230V Single Phase MCB Type Dual Power Automatic Transfer Switch – ATS

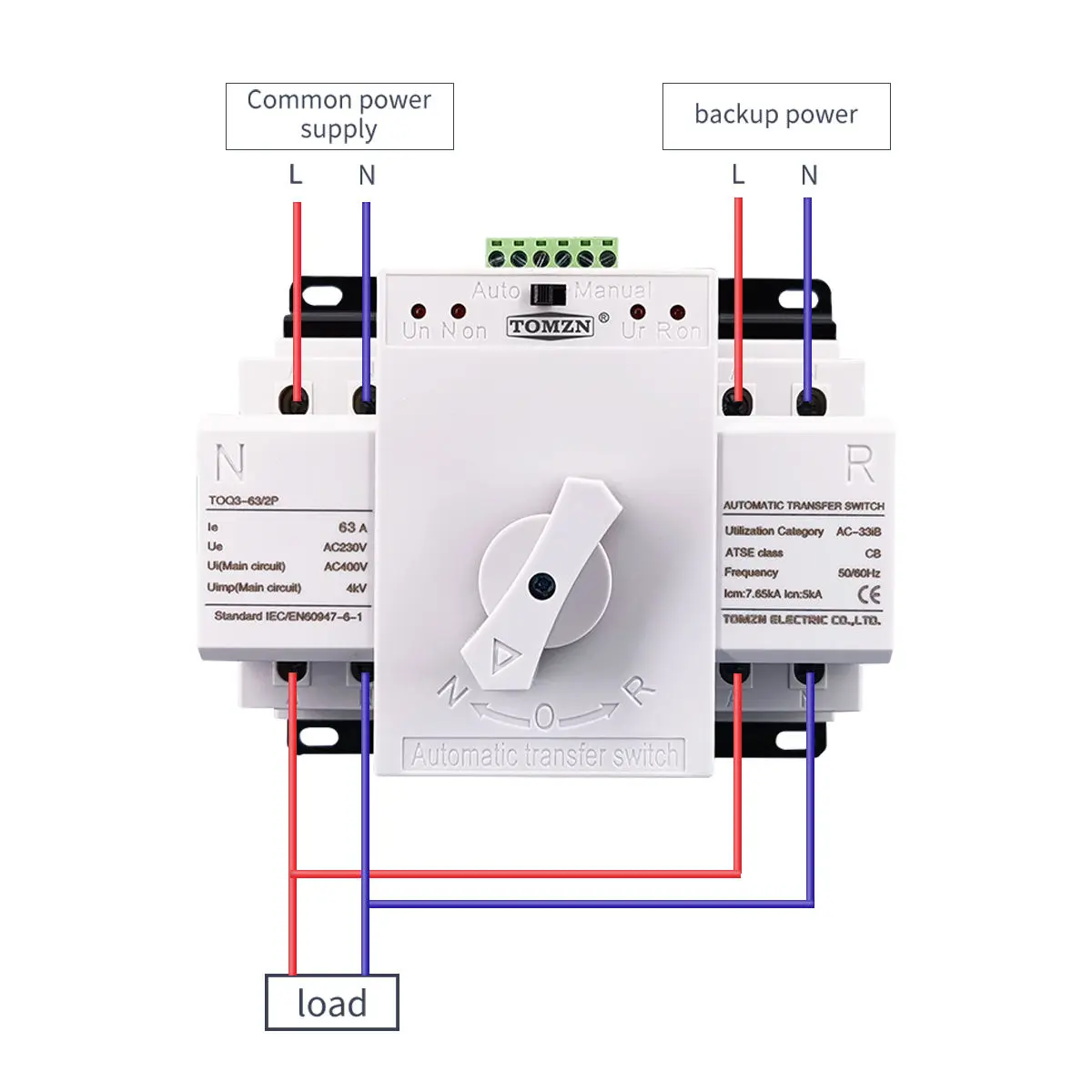

The 2P 63A Single Phase Automatic Transfer Switch (ATS) ensures that your critical loads remain powered by automatically switching between Normal and Reserve power sources when one fails.

This terminal-type ATS is ideal for AC 230V, 50/60Hz, up to 63A, and complies with IEC60947-6-1 & GB/T14048.11. The switch defaults to Normal power when available, and switches to Reserve power only when Normal is unavailable.

– Power is briefly interrupted during switching (Switch time <4s).
– This switch cannot start or stop a generator – it only switches between available power sources.

Key Functions & Features

Automatically switches between Normal & Reserve power sources
Single-phase 2-pole ATS with max current 63A
Switch time: <4 seconds, with momentary power interruption during transition
Normal power takes priority when both sources are available

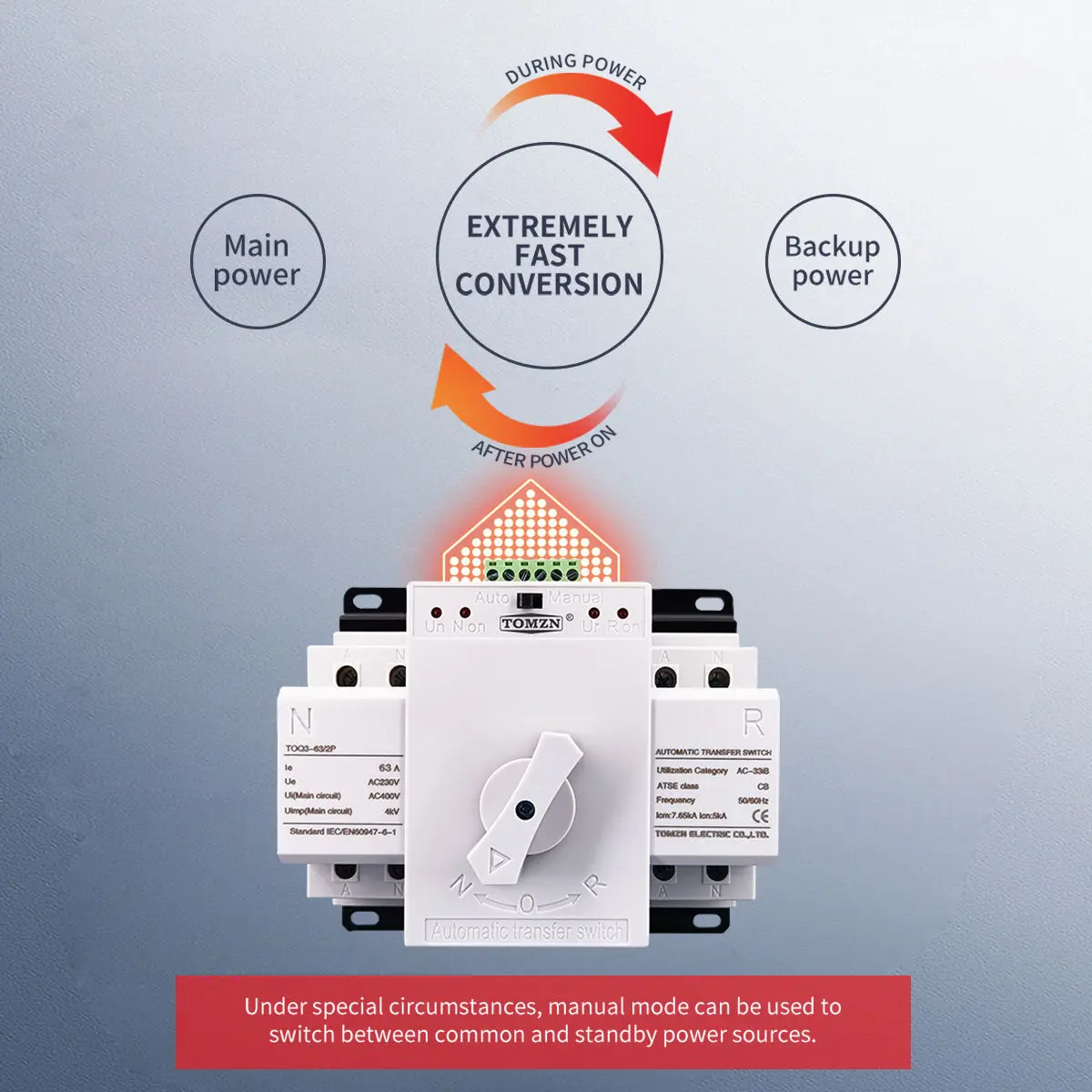

Supports both Automatic and Manual modes:
- Automatic: Press button to let the switch toggle itself
- Manual: Set to manual and change direction manually
Designed for terminal installations in homes, offices & small commercial setups
Conforms to international standards IEC60947-6-1 & GB/T14048.11
